SQUARE SHAPE SURFACE-PENDANT
We have complete supply chain, place your order here, we deliver to you!
Product Highlights
- Spotlights is precise, focused lighting that highlights key features and creates layered ambiance in spaces
≥50000 hours
UGR<19
SDCM<3
3 times QC
Aging 4 hours
Key Features / 關鍵特徵
|
1. Housing Color
black white grey
|
2. Optics / Beam Angle
Lens, reflector / 10°15°24°30°60°
|
|
3. CCT / CRI
2700k - 5000k / >80 >90 >95
|
4. DRIVER / INPUT VOLTAGE
TRIDONIC OSRAM PHILIPS / AC100-240V 50/60Hz
|
|
5. LED Chip
SAN´AN CHIP CITIZEN CREE BRIGELUX LUMINUS
|
6. Installation
Recessed / surface-mounted / surface pendant
|
|
7. Material / Warranty
ADC12 Aluminum / 3-5 years
|
8. Dimming Control
BLUETOOTH MESH/WI-FI/KNX/DALI-2/ZIGBEE3.0/PoE/PLC/Triac
|
9.Product List
| Series | Product No. | Luminous Efficiency | Wattage | LED Voltage | Dimension L×W×H | Cut Out | ||||
| SQUARE SHAPE SURFACE-PENDANT | DZ7001R-ZZ06W DZ7001R-PG06W DZ7001R-FG06W | 80-130 lm/W | 6W | DC36/48V | 60X60X135mm | mm | ||||

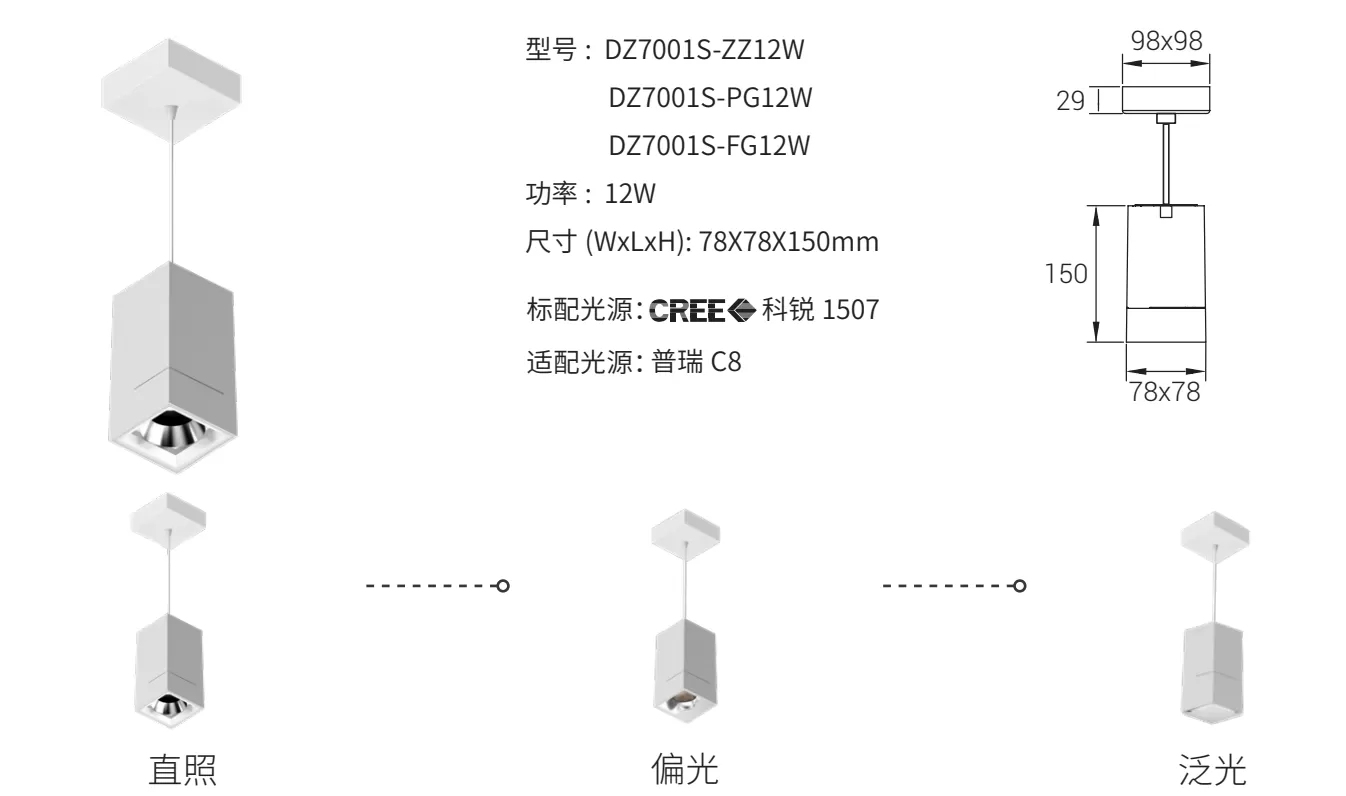

| DZ7001R-ZZ12W DZ7001R-PG12W DZ7001R-FG12W | 80-130 lm/W | 12W | DC36/48V | 78X78X150mm | mm | |||||
| DZ7001R-ZZ12W-TJ | 80-130 lm/W | 18W | DC36/48V | 78X78X150mm | mm | |||||
| MZ7001R-ZZ20W MZ7001R-PG20W | 80-130 lm/W | 20W | DC36/48V | 100X100X197mm | mm | |||||
| Usage example: wall art/painting accent lighting/bar counter task lighting/clothing/ | ||||||||||
| jewelry/boutique store/shoe cabinet/dining table/bedroom bedside | ||||||||||
