Featured Product
F-COB (WHITE)
We have complete supply chain, place your order here, we deliver to you!
Product Highlights
- F-COB and S-COB strips provide uniform, shadow-free light with 180°beam angle and no visible LED dots.
- They offer higher reliability than standard COB, and IP ratings up to IP68 for versatile high end indoor/outdoor linear lighting use. small LED solution, suitable for narrow spaces.
≥50000 hours
UGR<19
SDCM<3
3 times QC
Aging 4 hours
Key Features / 關鍵特徵
|
1. DRIVER / INPUT VOLTAGE
Constant Voltage LED Driver / AC100-240V 50/60Hz
|
2. LED Chip
SAN´AN CHIP CITIZEN CREE BRIGELUX
|
|
3. Material / Warranty
Silicone, PVC / 3-5 years
|
4. Dimming Control
BLUETOOTH MESH/WI-FI/KNX/DALI-2/ZIGBEE3.0/PoE/PLC/Triac
|
|
5. Ingress Protection
IP20 IP44 IP65 IP68
|
6. Beam Angle / CRI
180°/ >80 >90 >95
|
|
7. CCT / COLOR
1800k - 6500k / white
|
8. LED Chip Model
SMD2835 SMD5050 SMD3528 SMD5730
|
9.Product List
| Product No. |
Luminous Efficiency |
Wattage |
LED Voltage |
LED Quantity |
Rol lLength |
Cut Point |
PC BWidth/Thickness |
||||
| F-COB (WHITE) | HHC-320L | 90-110 lm/W | 3W | DC24V | 320pcs/m | 5/10m | 5cm | 3mm/2oz | |||
| HHC-320L | 90-110 lm/W | 7W | DC24V | 320pcs/m | 5/10m | 5cm | 5mm/2oz | ||||
| HHC-320L | 90-110 lm/W | 10W | DC24V | 320pcs/m | 5/10m | 5cm | 8mm/2oz | ||||
| HHC-480L | 90-110 lm/W | 12W | DC24V | 480pcs/m | 5/10m | 5cm | 8mm/2oz | ||||
| HHC-560L-CCT | 80-95 lm/W | 6W+6W | DC24V | 560pcs/m | 5/10m | 5cm | 10mm/2oz | ||||
| HHC-420L-DIGITAL | 80-95 lm/W | 12W | DC24V | 420pcs/m | 5/10m | 10cm | 10mm/2oz | ||||

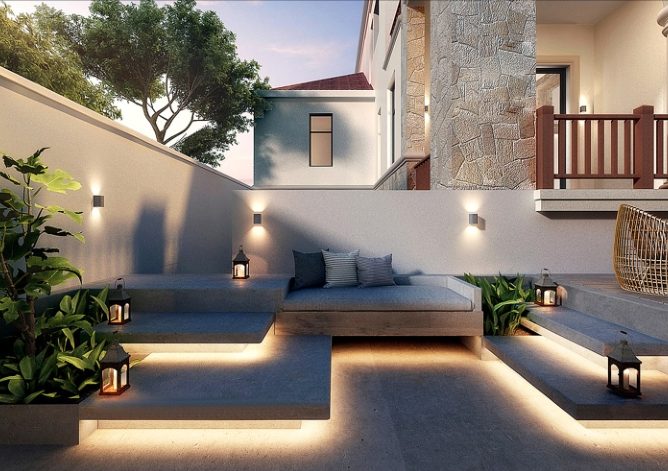

| Usage examples: Background walls and ceiling coves, commercial spaces, hotel lobby, guestroom, under-carbinet kitchen lighting, storefronts, areas require dotless seamless linear lighting | |||||||||||
| S-COB (WHITE) | HHS-252L-IP20 | 80-95 lm/W | 12W | DC24V | 252pcs/m | 5/10m | free cut | 8mm/2oz | |||
| HHC-252L-IP65 | 75-90 lm/W | 12W | DC24V | 252pcs/m | 5/10m | free cut | 8mm/2oz | ||||
| Usage examples: Background walls and ceiling coves, commercial spaces, hotel lobby, guestroom, under-carbinet kitchen lighting, storefronts, areas require dotless seamless linear lighting | |||||||||||
