F20 MAGNETIC TRACK LIGHT
We have complete supply chain, place your order here, we deliver to you!
Product Highlights
- Magnetic Track Lights allow flexible combinations with your lighting fixtures, supporting flood linear illumination, accent linear illumination, suspended decorative lighting, adjustable spotlighting, and wall washing effects. Installation requires no tools.
≥50000 hours
UGR<19
SDCM<3
3 times QC
Aging 4 hours
Key Features / 關鍵特徵
|
1. Housing Color
black white grey
|
2. Optics / Beam Angle
Lens, reflector / 30°120°
|
|
3. CCT / CRI
2700k - 5000k / >80 >90
|
4. DRIVER / INPUT VOLTAGE
TRIDONIC OSRAM PHILIPS / AC100-240V 50/60Hz
|
|
5. LED Chip
SAN´AN CHIP CITIZEN CREE BRIGELUX LUMINUS
|
6. Installation
magnetic track, tool-free installation
|
|
7. Material / Warranty
ADC12 Aluminum / 3-5 years
|
8. Dimming Control
BLUETOOTH MESH/WI-FI/KNX/DALI-2/ZIGBEE3.0/PoE/PLC/Triac
|

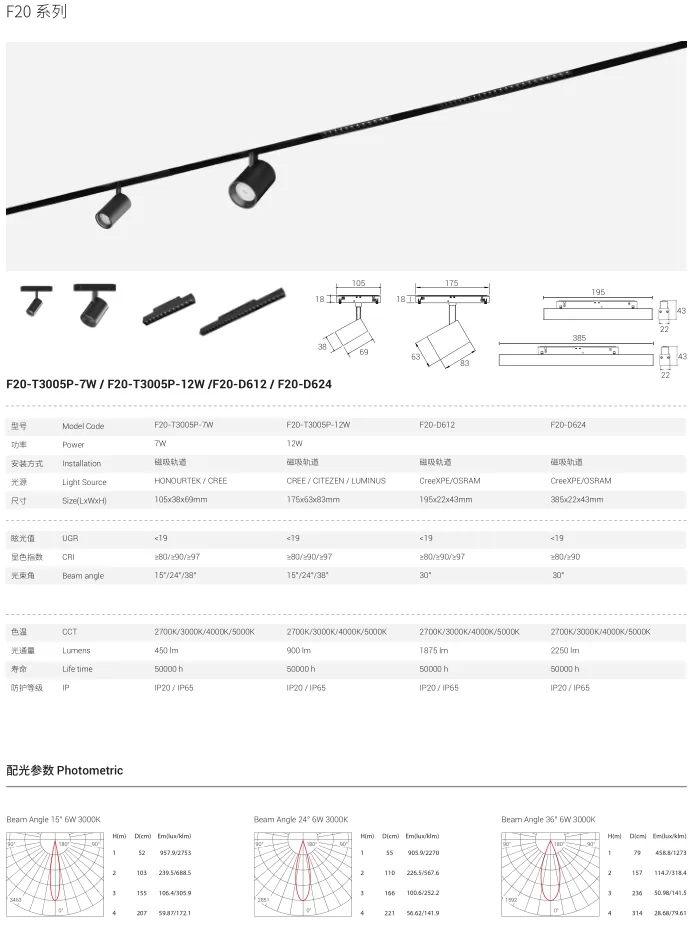

9.Product List
| Series | Product No. | Luminous Efficiency | Wattage | LED Voltage | Dimension L×W×H | Cut Out | ||||
F20 MAGNETIC TRACK LIGHT | F20-T3005P-7W | 80-130 lm/W | 7W | DC36/48V | 105x38x69mm | mm | ||||
| F20-T3005P-12W | 80-130 lm/W | 12W | DC36/48V | 175x63x83mm | mm | |||||
| F20-D612 | 80-130 lm/W | DC36/48V | 195x22x43mm | mm | ||||||
| F20-D624 | 80-130 lm/W | DC36/48V | 385x22x43mm | mm | ||||||
| Usage example: accent lighting for merchandise, artworks, decorative objects, and | ||||||||||
| clothing displays. (showrooms, clothing stores, coffee shops, art gallries, hotels) | ||||||||||
