Featured Product
F20 MAGNETI TRACK LIGHT
We have complete supply chain, place your order here, we deliver to you!
Product Highlights
- Magnetic Track Lights allow flexible combinations with your lighting fixtures, supporting flood linear illumination, accent linear illumination, suspended decorative lighting, adjustable spotlighting, and wall washing effects. Installation requires no tools
≥50000 hours
UGR<19
SDCM<3
3 times QC
Aging 4 hours
Key Features / 關鍵特徵
|
1. Housing Color
black white grey
|
2. Optics / Beam Angle
Lens, reflector / 12°24°38°
|
|
3. CCT / CRI
2700k - 5000k / >80 >90
|
4. DRIVER / INPUT VOLTAGE
TRIDONIC OSRAM PHILIPS / AC100-240V 50/60Hz
|
|
5. LED Chip
SAN´AN CHIP CITIZEN CREE BRIGELUX LUMINUS
|
6. Installation
magnetic track pendant mounting
|
|
7. Material / Warranty
ADC12 Aluminum / 3-5 years
|
8. Dimming Control
BLUETOOTH MESH/WI-FI/KNX/DALI-2/ZIGBEE3.0/PoE/PLC/Triac
|
9.Product List
| Series | Product No. |
Luminous Efficiency |
Wattage | LED Voltage |
Dimension D×H |
Cut Out | ||||
|

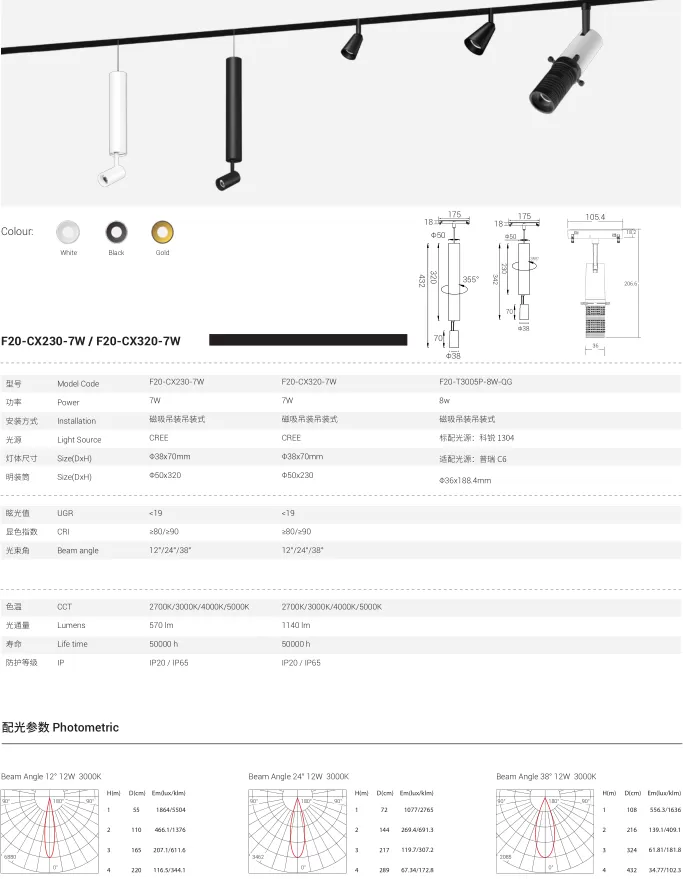

F20 MAGNETI TRACK LIGHT |
F20-CX230-7W | 80-130 lm/W | 7W | DC36/48V | Φ38x70mm | mm | ||||
| F20-CX320-7W | 80-130 lm/W | 7W | DC36/48V | Φ38x70mm | mm | |||||
| F20-T3005P-8W-QG | 80-130 lm/W | 8W | DC36/48V | Φ36x188.4mm | mm | |||||
| Usage example: accent lighting for merchandise, artworks, decorative objects, and | ||||||||||
| clothing displays. (showrooms, clothing stores, coffee shops, art gallries, hotels) | ||||||||||
