6W TRIMED
We have complete supply chain, place your order here, we deliver to you!
Product Highlights
- Elevate your space with sleek, energy-efficient LED recessed downlights that deliver uniform,glare-free ambient lighting while creating a clean, modern ceiling line perfect for any room.
≥50000 hours

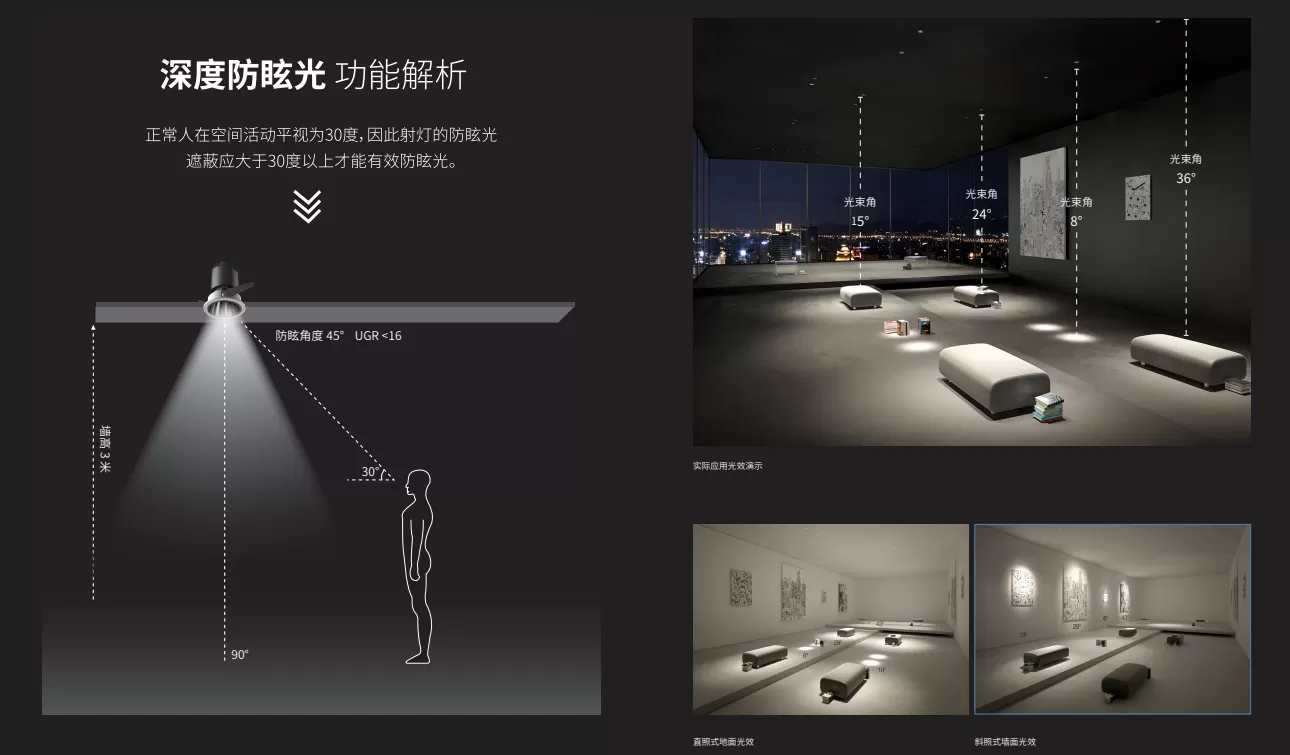

UGR<19
SDCM<3
3 times QC
Aging 4 hours
Key Features / 關鍵特徵
|
1. Housing Color
black white grey
|

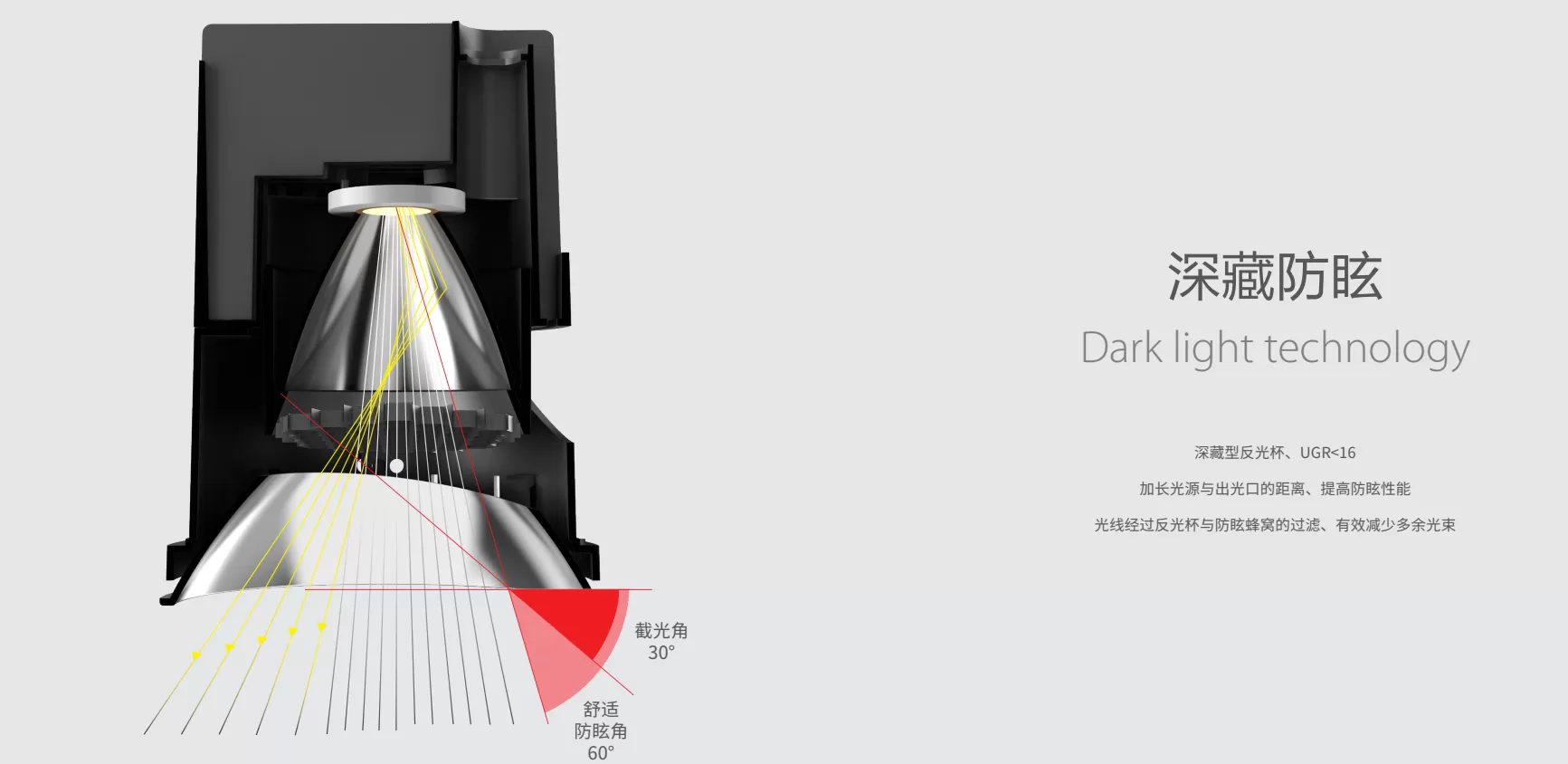

2. Optics / Beam Angle
Lens, reflector / 10°/ 15°/24°/ 38°
|
|
3. CCT / CRI
2700k - 5000k / >80 >90 >95
|
4. DRIVER / INPUT VOLTAGE
TRIDONIC OSRAM PHILIPS / AC100-240V 50/60Hz
|
|
5. LED Chip
SAN´AN CHIP CITIZEN CREE BRIGELUX LUMINUS
|

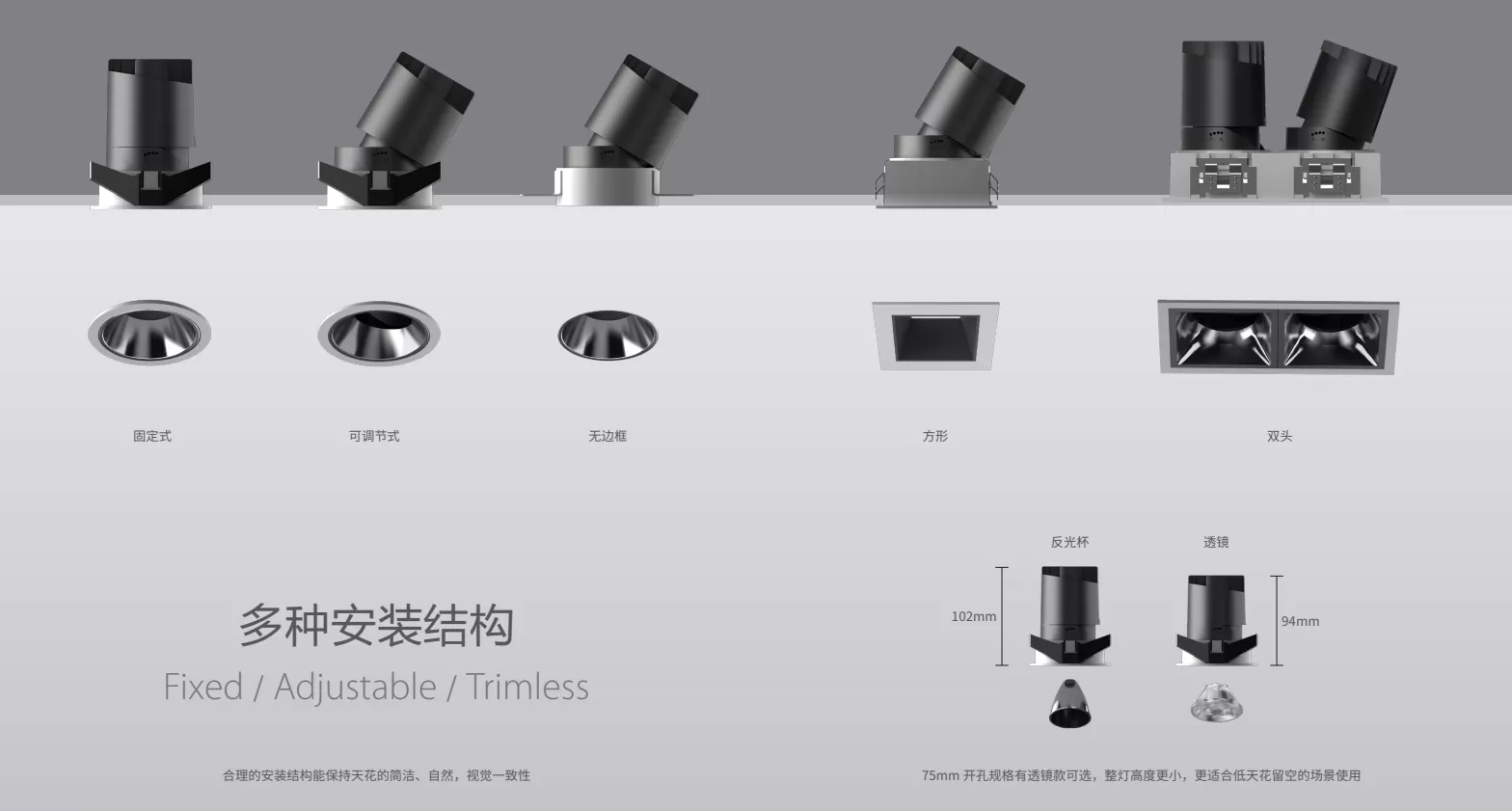

6. Installation
Recessed
|
|
7. Material / Warranty
ADC12 Aluminum / 3-5 years
|
8. Dimming Control
BLUETOOTH MESH/WI-FI/KNX/DALI-2/ZIGBEE3.0/PoE/PLC/Triac
|
9.Product List

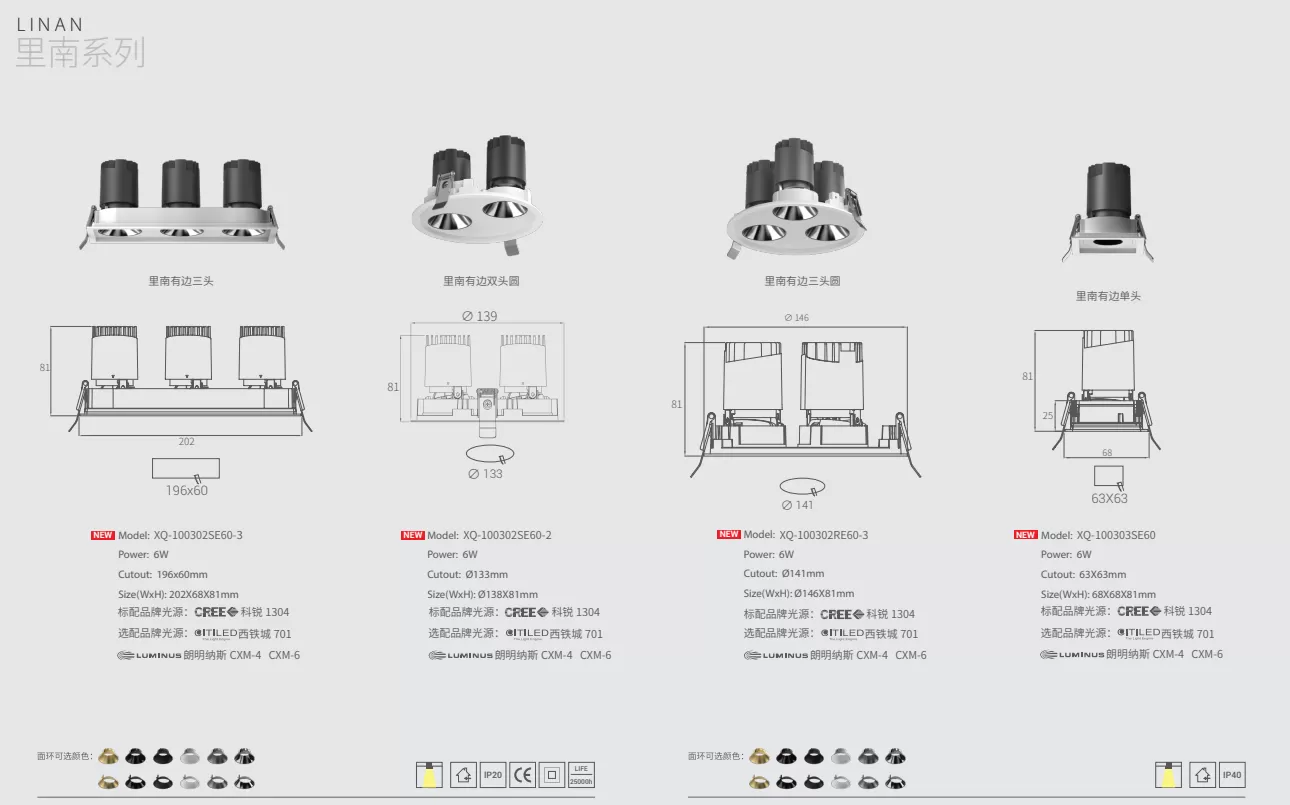

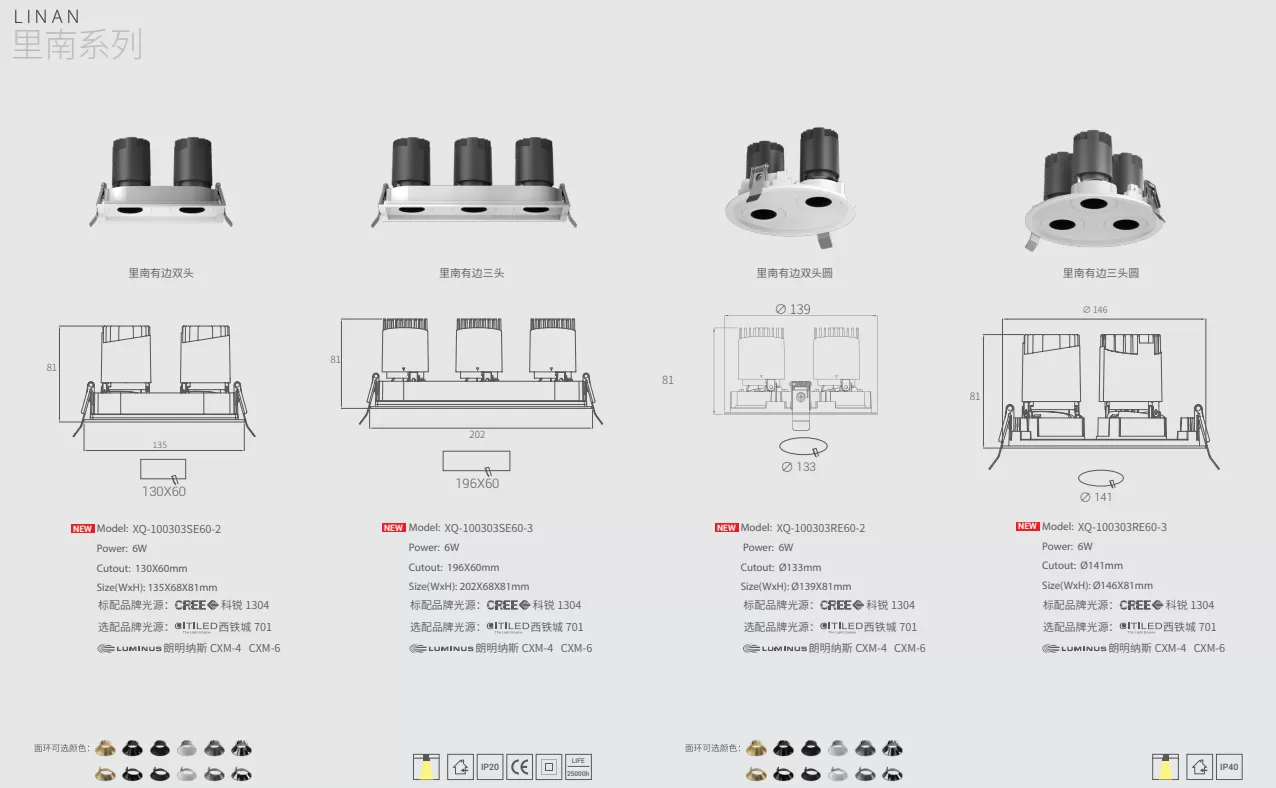

| Series | Product No. | Luminous Efficiency | Wattage | LED Voltage | Dimension L×W×H | Cut Out | ||||
6W TRIMED | XQ-100303SE60 | 80-130 lm/W | 6W | DC36/48V | 68X68X81mm | Φ63mm | ||||
| XQ-100303SE60-2 | 80-130 lm/W | 6W | DC36/48V | 135X68X81mm | Φ130XW60mm | |||||
| XQ-100303SE60-3 | 80-130 lm/W | 6W | DC36/48V | 202X68X81mm | Φ196XW60mm | |||||
| XQ-100303RE60-2 | 80-130 lm/W | 6W | DC36/48V | Φ139X81mm | Φ133mm | |||||

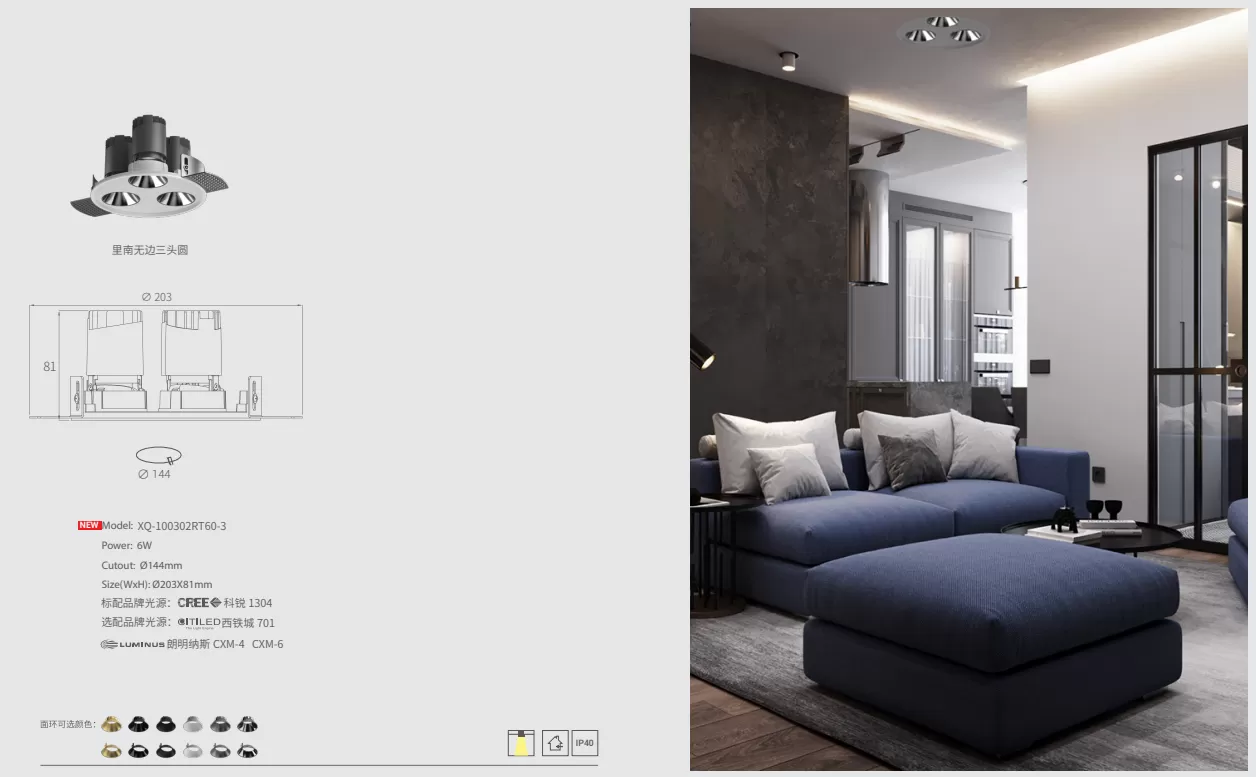

| XQ-100303RE60-3 | 80-130 lm/W | 6W | DC36/48V | Φ146X81mm | Φ141mm | |||||

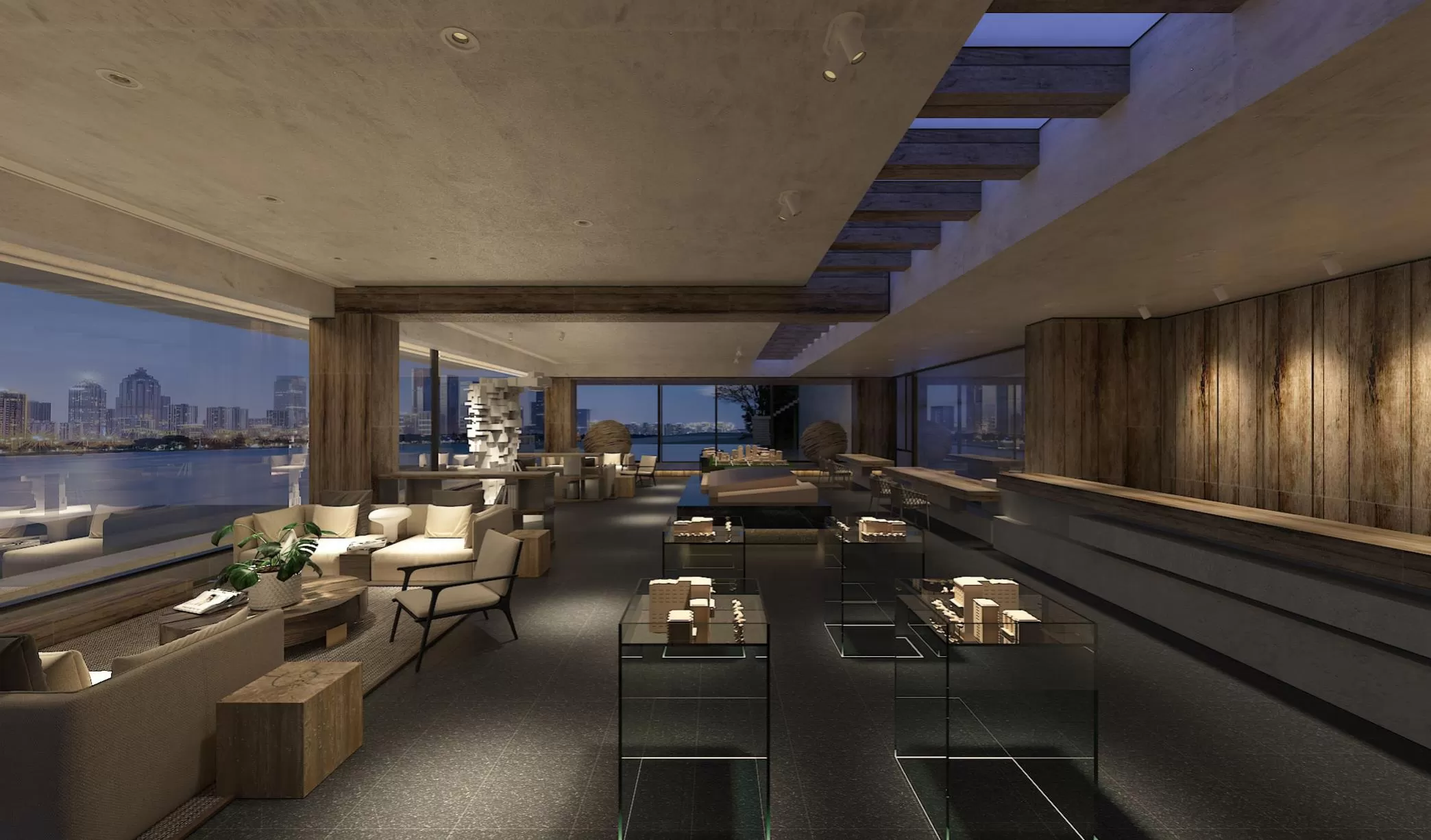

| Usage example: general/accent/task lighting, home/commercail/public spaces. | ||||||||||
| living room/dining room/bedroom/hallway, offices/hotels lobbies/shopping malls/restaurants | ||||||||||
