Featured Product
20W/30W TRIMED
We have complete supply chain, place your order here, we deliver to you!
Product Highlights
- Elevate your space with sleek, energy-efficient LED recessed downlights that deliver uniform,glare-free ambient lighting while creating a clean, modern ceiling line perfect for any room
≥50000 hours
UGR<19
SDCM<3
3 times QC
Aging 4 hours
Key Features / 關鍵特徵
|
1. Housing Color
black white grey
|
2. Optics / Beam Angle
Lens, reflector / 12°15°24°38°55°
|
|
3. CCT / CRI
2700k - 5000k / >80 >90 >95
|
4. DRIVER / INPUT VOLTAGE
TRIDONIC OSRAM PHILIPS / AC100-240V 50/60Hz
|
|
5. LED Chip
SAN´AN CHIP CITIZEN CREE BRIGELUX LUMINUS
|
6. Installation
Recessed
|
|
7. Material / Warranty
ADC12 Aluminum / 3-5 years
|
8. Dimming Control
BLUETOOTH MESH/WI-FI/KNX/DALI-2/ZIGBEE3.0/PoE/PLC/Triac
|
9.Product List

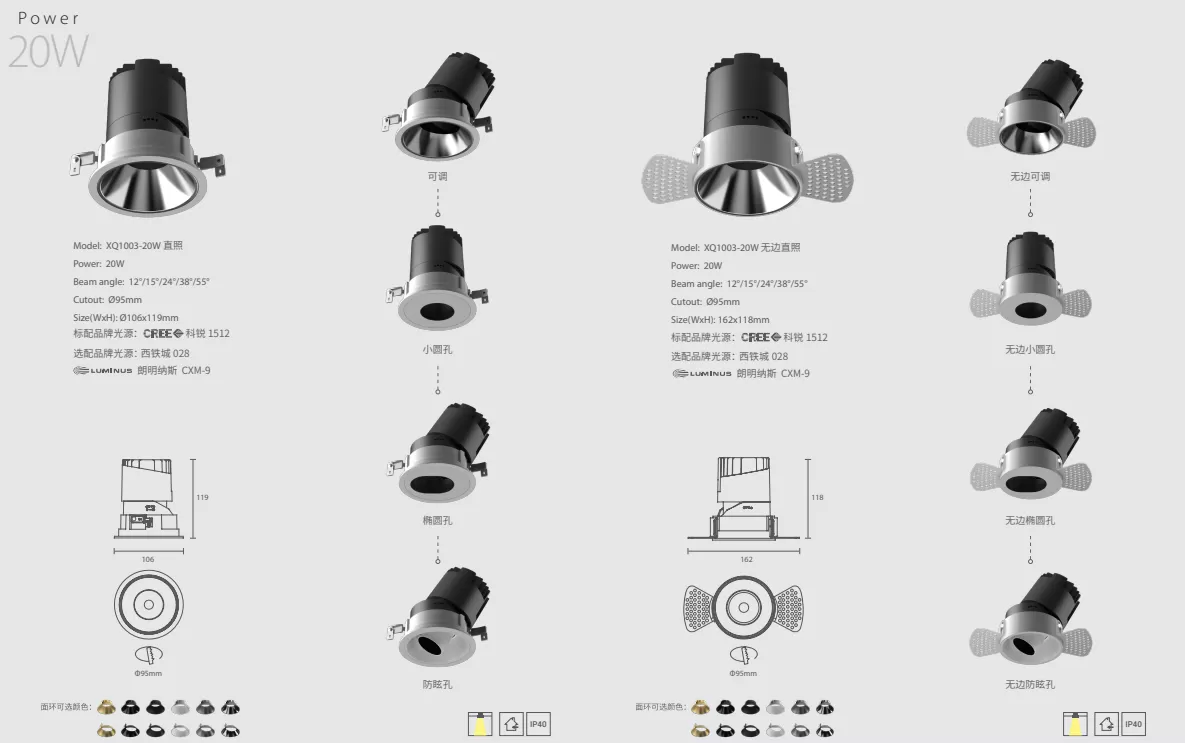

| Series | Product No. | Luminous Efficiency | Wattage | LED Voltage | Dimension D×H | Cut Out | ||||
| 20W/30W TRIMED | XQ1003-20W | 80-130 lm/W | 20W | DC36/48V | Φ106x119mm | Φ95mm | ||||
| XQ1003-30W | 80-130 lm/W | 30W | DC36/48V | Φ132x145mm | Φ120mm | |||||
| Usage example: general/accent/task lighting, home/commercail/public spaces. | ||||||||||
| living room/dining room/bedroom/hallway, offices/hotels lobbies/shopping malls/restaurants | ||||||||||
